Scroogeclamp™ Pittsburgh Adjustable Brace Company

Specs

Powder-coated steel, built to push or pull 2,000 pounds.

Material Steel
Finish Powder coating
Weight 2.75 lbs
Axial force 2,000 lbs push or pull
Force on the handle 80 lbs
Safety factor Handle bends at 2,600 lbs
Length, closed 12¾ in
Length, extended 20½ in
Bracket width 2 in
Patent U.S. Patent No. 5,622,354

The drawbar is left-hand threaded on one half and right-hand threaded on the other, with a handle through the middle. Each end threads into a bracket with attachment holes.

The handle bends at 2,600 pounds, providing a built-in safety factor that prevents it from being overloaded by, say, someone putting a piece of pipe over the handle.

Dimensions

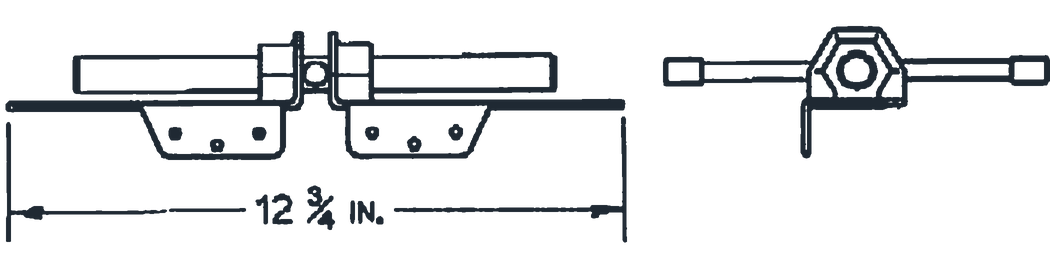

  • Dimension drawing of the Scroogeclamp fully closed, 12 and three quarter inches long, with an end view of the drawbar
    Fully closed: 12¾ in overall

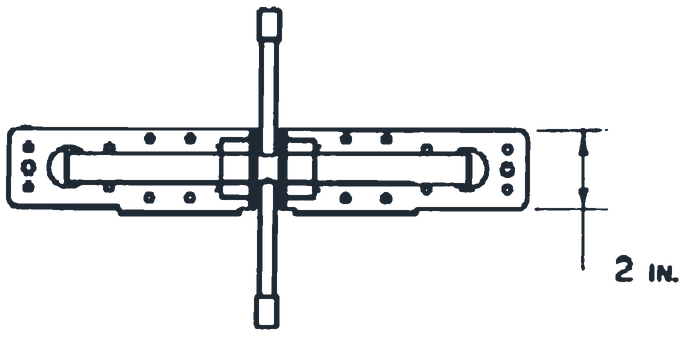

  • Top view drawing of the Scroogeclamp with the cross handle, showing the 2 inch bracket width
    Top view with handle: brackets 2 in wide

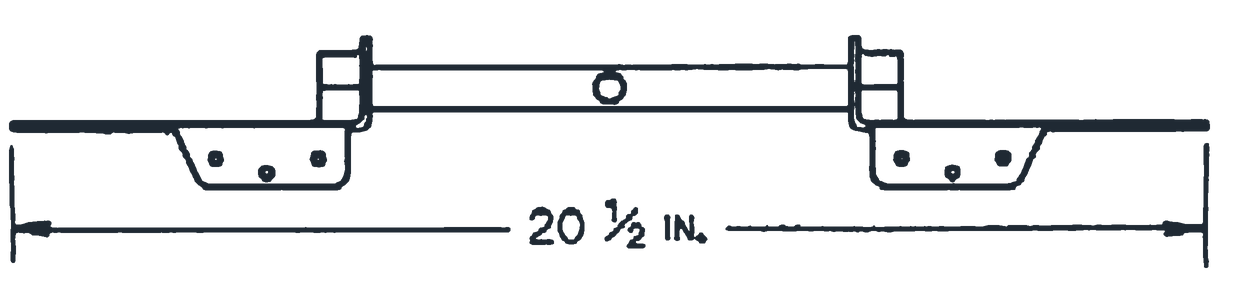

  • Dimension drawing of the Scroogeclamp fully extended, 20 and one half inches long
    Fully extended: 20½ in overall
